README.md

Tables

Usage

Requires Python 3.5 or greater and the wcwidth library, which users can install with: pip3 install wcwidth. See the tables.py file for full usage information.

Complete versions of all of the examples below and more can be found in the test.py file.

Run with: python3 test.py.

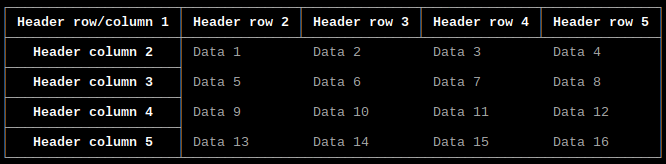

Output str array as table

import tables

# Set array

tables.array(array, headerrow=True, headercolumn=True)

Table cells can contain Unicode characters, but not newlines and tabs.

Output array as table with separate header row and column

import tables

headerrow = ["Header row/column 1", "Header row 2", "Header row 3", "Header row 4", "Header row 5"]
headercolumn = ["Header column 2", "Header column 3", "Header column 4", "Header column 5"]

# Set array

tables.array(array, headerrow, headercolumn, headerrow=True, headercolumn=True)

Output same as example above.

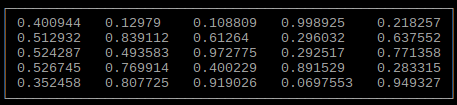

Output array as table

import tables

# Set array, can be any sequence data type

tables.array(array)

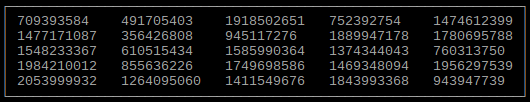

Output sorted array as table

import tables

# Set array

sortdimension = 0  # Column to sort by

array = sorted(array, key=lambda x: x[sortdimension])

tables.array(array)

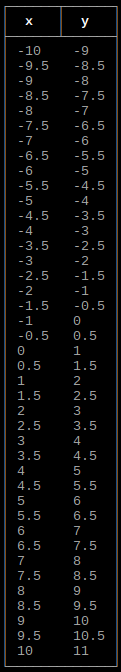

Output single function as table

import tables

def afunction(x):
	return x + 1

xmin = -10
xmax = 10
xscl = 2

tables.function(xmin, xmax, xscl, afunction, headerrow=True)

Output lambda function as table

import tables

xmin = -10
xmax = 10
xscl = 2

afunction = lambda x: x + 1

tables.function(xmin, xmax, xscl, afunction, headerrow=True)

Output same as example above.

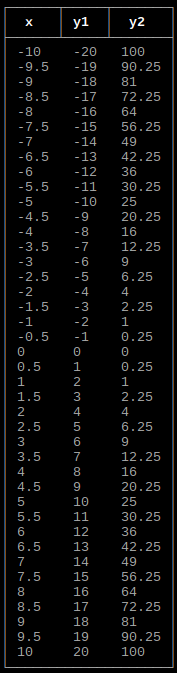

Output multiple functions as table

import tables

def function1(x):
	return 2 * x

def function2(x):
	return x ** 2

xmin = -10
xmax = 10
xscl = 2

# Function parameter and return value can be any data type, as long as they are the same
functions = [function1, function2]

tables.functions(xmin, xmax, xscl, functions, headerrow=True)

Output multiple lambda functions as table

import tables

xmin = -10
xmax = 10
xscl = 2

# Function parameter and return value can be any data type, as long as they are the same
functions = [lambda x: 2 * x, lambda x: x ** 2]

tables.functions(xmin, xmax, xscl, functions, headerrow=True)

Output same as example above.

Options

Header row

Option: headerrow
Default value: False

Header rows are bolded, centered and have a border.

Header column

Option: headercolumn
Default value: False

Header columns are bolded, centered and have a border.

Table border

Option: tableborder
Default value: False

Cell border

Option: cellborder
Default value: False

Cell padding

Option: padding
Default value: 1

Alignment

Option: alignment
Values:

False (left, default)
True (right)

Title

Option: title
Default value: None

The title is word wrapped based on the current width of the terminal. Handles newlines, tabs and Unicode characters.

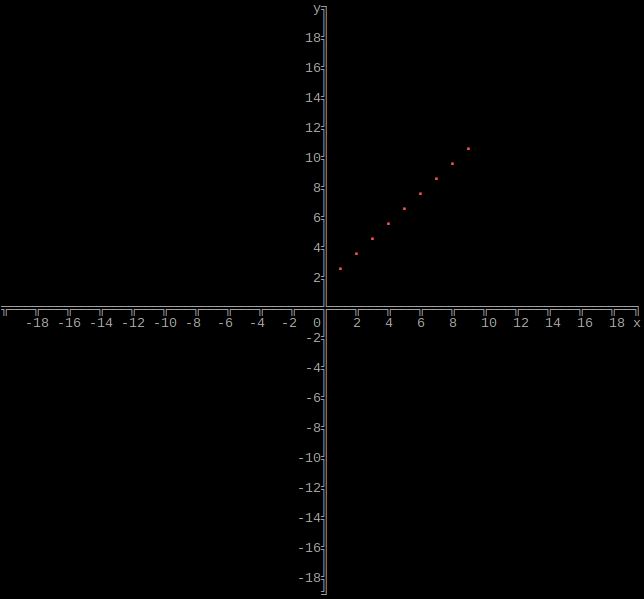

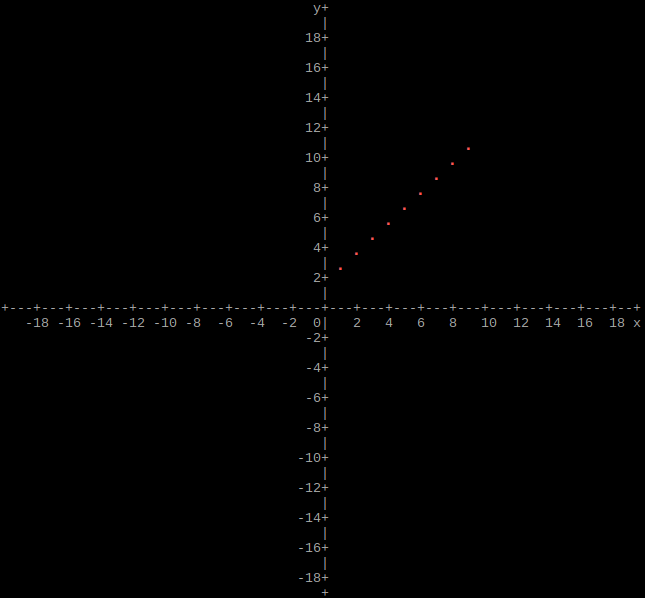

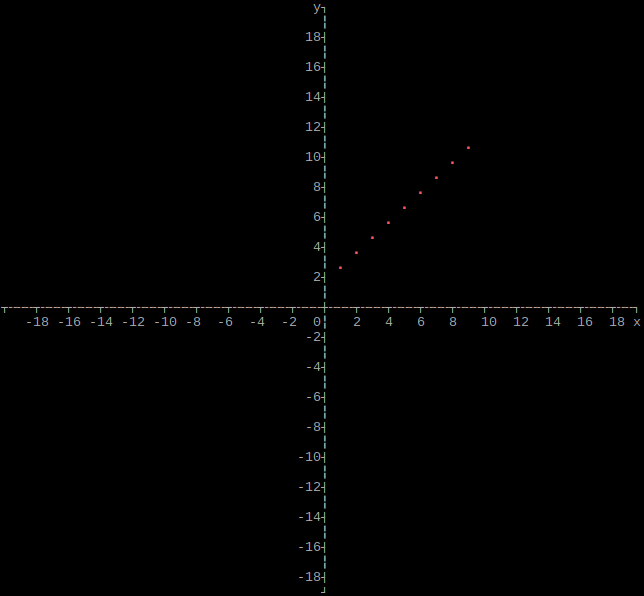

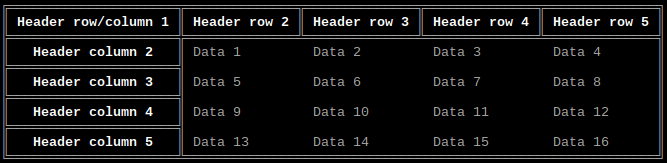

Border style

Option: style
Values:

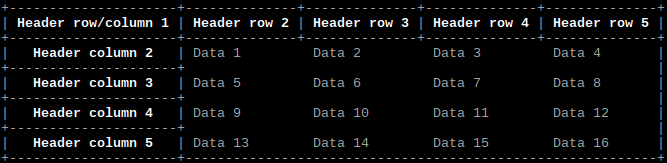

ASCII
Basic

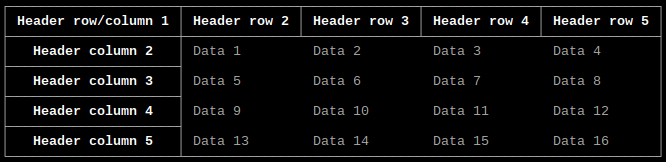

Light (default)
Heavy
Double
Light Dashed

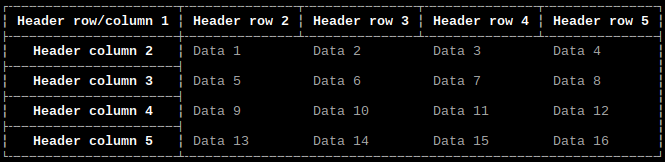

Heavy Dashed

Graphs/Plots

Usage

Requires Python 3.5 or greater and the wcwidth library, which users can install with: pip3 install wcwidth. See the graphs.py file for full usage information.

Complete versions of all of the examples below and more can be found in the test.py file.

Run with: python3 test.py.

If height is 0, it will be set to the current height of the terminal (number of rows times four). If width is 0, it will be set to the current width of the terminal (number of columns times two).

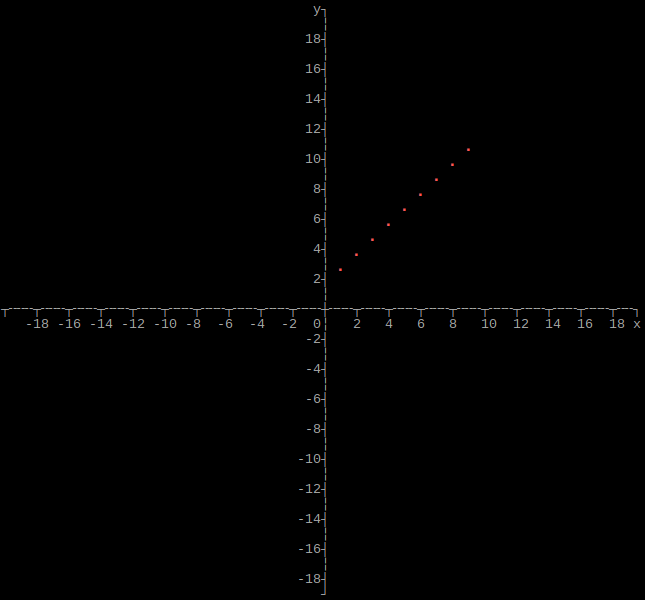

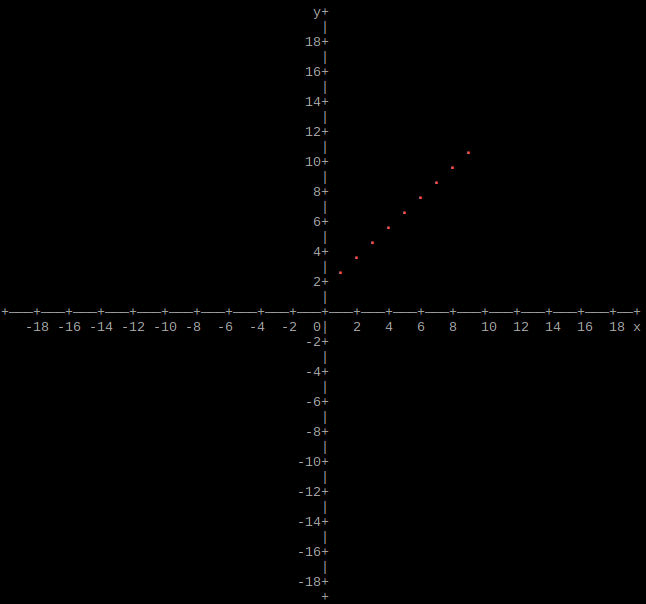

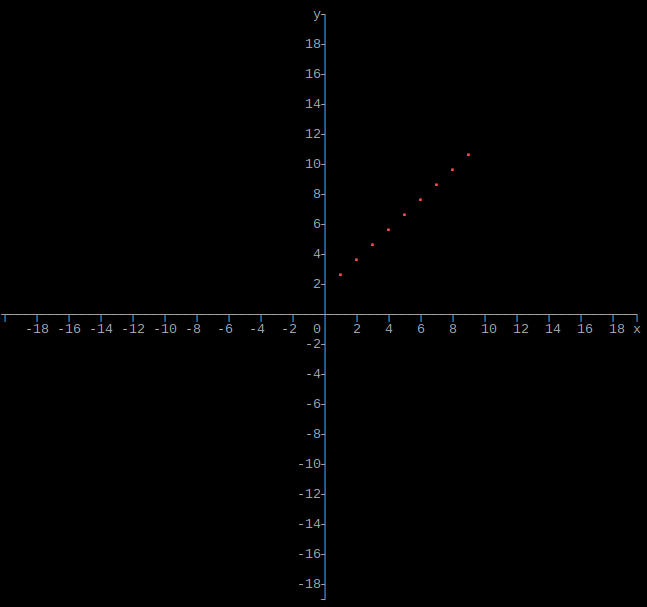

Output single array as plot

import graphs

height = 160
width = 160

xmin = -20
xmax = 20
ymin = -20
ymax = 20

# Set array, can be any sequence data type, but must have exactly two columns

graphs.array(height, width, xmin, xmax, ymin, ymax, array)

If xmin and xmax are both 0, they will be set to the respective minimum and maximum values of x in the array. If ymin and ymax are both 0, they will be set to the respective minimum and maximum values of y in the array.

Use graphs.arrays() to plot multiple arrays, which can be of different sizes.

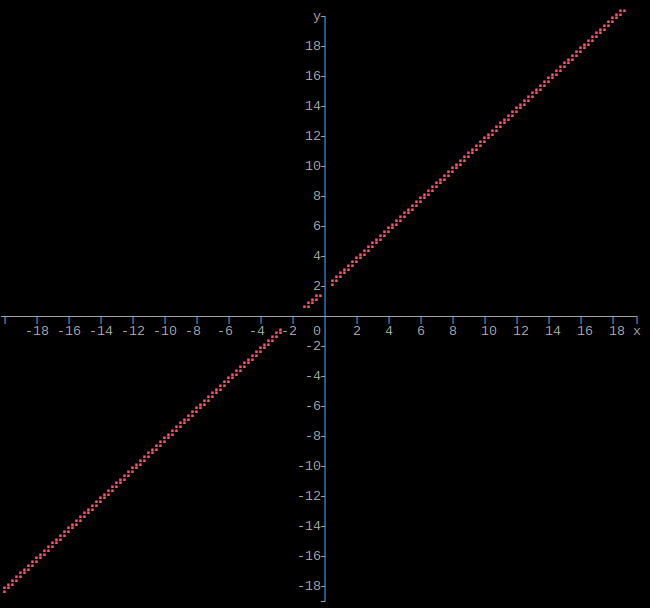

Output single function as graph

import graphs

def afunction(x):
	return x + 1

height = 160
width = 160

xmin = -20
xmax = 20
ymin = -20
ymax = 20

graphs.function(height, width, xmin, xmax, ymin, ymax, afunction)

Output lambda function as graph

import graphs

height = 160
width = 160

xmin = -20
xmax = 20
ymin = -20
ymax = 20

afunction = lambda x: x + 1

graphs.function(height, width, xmin, xmax, ymin, ymax, afunction)

Output same as example above.

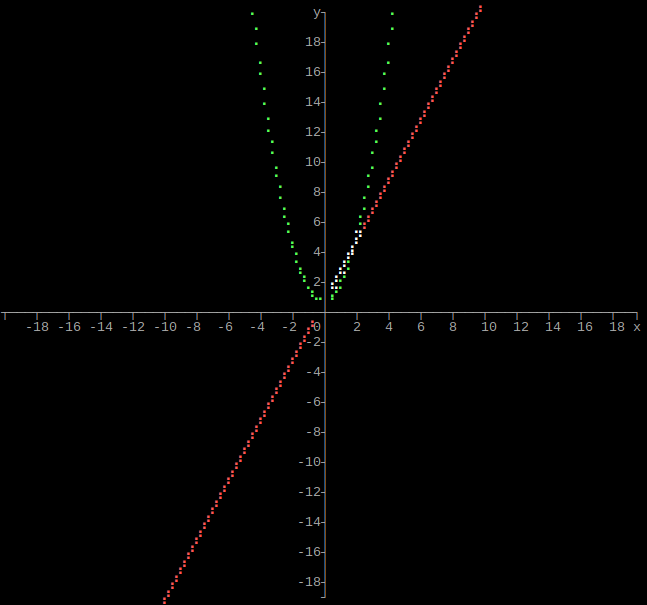

Output multiple functions as graph

import graphs

def function1(x):
	return 2 * x

def function2(x):
	return x ** 2

height = 160
width = 160

xmin = -20
xmax = 20
ymin = -20
ymax = 20

# Function parameter and return value can be any data type, as long as they are the same
functions = [function1, function2]

graphs.functions(height, width, xmin, xmax, ymin, ymax, functions)

Output multiple lambda functions as graph

import graphs

height = 160
width = 160

xmin = -20
xmax = 20
ymin = -20
ymax = 20

# Function parameter and return value can be any data type, as long as they are the same
functions = [lambda x: 2 * x, lambda x: x ** 2]

graphs.functions(height, width, xmin, xmax, ymin, ymax, functions)
